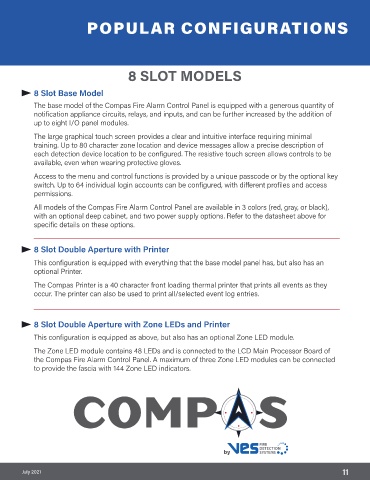

POPULAR CONFIGURATIONS

8 SLOT MODELS

8 Slot Base Model

The base model of the Compas Fire Alarm Control Panel is equipped with a generous quantity of
notification appliance circuits, relays, and inputs, and can be further increased by the addition of
up to eight I/O panel modules.

The large graphical touch screen provides a clear and intuitive interface requiring minimal
training. Up to 80 character zone location and device messages allow a precise description of
each detection device location to be configured. The resistive touch screen allows controls to be
available, even when wearing protective gloves.

Access to the menu and control functions is provided by a unique passcode or by the optional key
switch. Up to 64 individual login accounts can be configured, with different profiles and access
permissions.

All models of the Compas Fire Alarm Control Panel are available in 3 colors (red, gray, or black),
with an optional deep cabinet, and two power supply options. Refer to the datasheet above for
specific details on these options.

8 Slot Double Aperture with Printer

This configuration is equipped with everything that the base model panel has, but also has an
optional Printer.

The Compas Printer is a 40 character front loading thermal printer that prints all events as they
occur. The printer can also be used to print all/selected event log entries.

8 Slot Double Aperture with Zone LEDs and Printer
This configuration is equipped as above, but also has an optional Zone LED module.

The Zone LED module contains 48 LEDs and is connected to the LCD Main Processor Board of
the Compas Fire Alarm Control Panel. A maximum of three Zone LED modules can be connected
to provide the fascia with 144 Zone LED indicators.

July 2021 11
