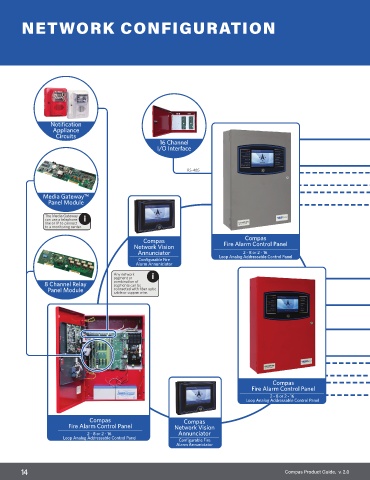

NETWORK CONFIGURATION

SLC Devices

Notification
Appliance
Circuits
16 Channel
I/O Interface
Loop 1

RS-485

Loops 2 - 16
if fitted
Media Gateway™
Panel Module

The Media Gateway
can use a telephone i
line or IP to connect
to a monitoring center.
Compas Compas
Network Vision Fire Alarm Control Panel
Annunciator 2 - 8 or 2 - 16
Configurable Fire Loop Analog Addressable Control Panel
Alarm Annuniciator
Any network i
segment or
8 Channel Relay combination of
segments can be
Panel Module connected with fiber optic
cable or copper wire.
Loop 1

Loop 2

Loops 3 - 16
Compas if fitted
Fire Alarm Control Panel
2 - 8 or 2 - 16
Loop Analog Addressable Control Panel

Compas Compas
Fire Alarm Control Panel Network Vision
2 - 8 or 2 - 16 Annunciator
Loop Analog Addressable Control Panel Configurable Fire
Alarm Annuniciator

14 Compas Product Guide, v. 2.0
