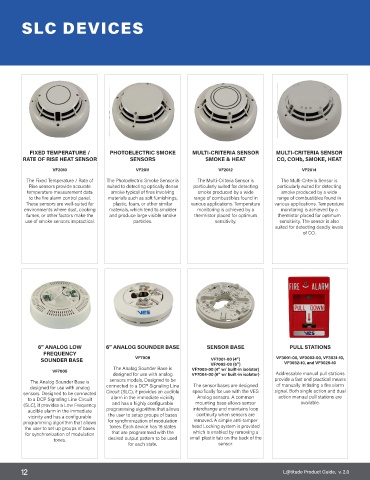

SLC DEVICES
FIXED TEMPERATURE / PHOTOELECTRIC SMOKE MULTI-CRITERIA SENSOR MULTI-CRITERIA SENSOR
RATE OF RISE HEAT SENSOR SENSORS SMOKE & HEAT CO, COHb, SMOKE, HEAT
VF2010 VF2011 VF2012 VF2014
The Fixed Temperature / Rate of The Photoelectric Smoke Sensor is The Multi-Criteria Sensor is The Multi-Criteria Sensor is
Rise sensors provide accurate suited to detecting optically dense particularly suited for detecting particularly suited for detecting
temperature measurement data smoke typical of fires involving smoke produced by a wide smoke produced by a wide
to the fire alarm control panel. materials such as soft furnishings, range of combustibles found in range of combustibles found in
These sensors are well-suited for plastic, foam, or other similar various applications. Temperature various applications. Temperature
environments where dust, cooking materials, which tend to smolder monitoring is achieved by a monitoring is achieved by a
fumes, or other factors make the and produce large visible smoke thermistor placed for optimum thermistor placed for optimum
use of smoke sensors impractical. particles. sensitivity. sensitivity. The sensor is also
suited for detecting deadly levels
of CO.
6” ANALOG LOW 6” ANALOG SOUNDER BASE SENSOR BASE PULL STATIONS
FREQUENCY
SOUNDER BASE VF7008 VF7001-00 (4”) VF3001-00, VF3002-00, VF3031-10,
The Analog Sounder Base is VF7002-00 (6”) VF3032-10, and VF3029-10
VF7005 VF7003-00 (4” w/ built-in isolator)
designed for use with analog VF7004-00 (6” w/ built-in isolator) Addressable manual pull stations
The Analog Sounder Base is sensors models. Designed to be provide a fast and practical means
designed for use with analog connected to a DCP Signaling Line The sensor bases are designed of manually initiating a fire alarm
sensors. Designed to be connected Circuit (SLC), it provides an audible specifically for use with the VES signal. Both single action and dual
to a DCP Signaling Line Circuit alarm in the immediate vicinity Analog sensors. A common action manual pull stations are
(SLC), it provides a Low Frequency and has a highly configurable mounting base allows sensor available.
audible alarm in the immediate programming algorithm that allows interchange and maintains loop
vicinity and has a configurable the user to setup groups of bases continuity when sensors are
programming algorithm that allows for synchronization of modulation removed. A simple anti-tamper
the user to set up groups of bases tones. Each device has 16 states head Locking system is provided
for synchronization of modulation that are programmed with the which is enabled by removing a
tones. desired output pattern to be used small plastic tab on the back of the
for each state. sensor.
