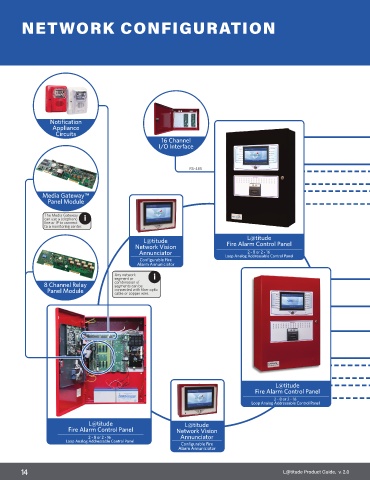

NETWORK CONFIGURATION

SLC Devices

Notification
Appliance
Circuits
16 Channel
I/O Interface

Loop 1
RS-485

Loops 2 - 16
if fitted
Media Gateway™
Panel Module

The Media Gateway
can use a telephone i
line or IP to connect
to a monitoring center.
L@titude L@titude
Network Vision Fire Alarm Control Panel
Annunciator Loop Analog Addressable Control Panel
2 - 8 or 2 - 16
Configurable Fire
Alarm Annuniciator
Any network i
segment or
8 Channel Relay combination of
segments can be
Panel Module connected with fiber optic
cable or copper wire.
Loop 1

Loop 2

Loops 3 - 16
L@titude if fitted
Fire Alarm Control Panel
2 - 8 or 2 - 16
Loop Analog Addressable Control Panel

L@titude L@titude
Fire Alarm Control Panel Network Vision
2 - 8 or 2 - 16 Annunciator
Loop Analog Addressable Control Panel
Configurable Fire
Alarm Annuniciator
