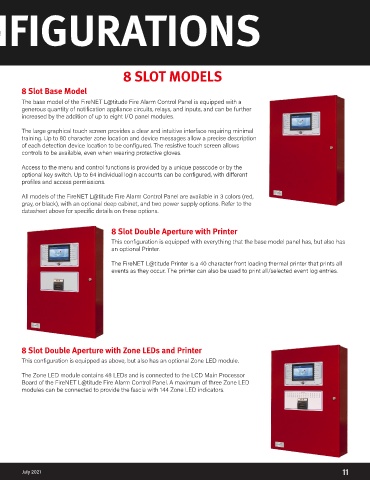

POPULAR CONFIGURATIONS

4 SLOT MODELS 8 SLOT MODELS

8 Slot Base Model
The base model of the FireNET L@titude Fire Alarm Control Panel is equipped with a
generous quantity of notification appliance circuits, relays, and inputs, and can be further
increased by the addition of up to eight I/O panel modules.

The large graphical touch screen provides a clear and intuitive interface requiring minimal
training. Up to 80 character zone location and device messages allow a precise description
of each detection device location to be configured. The resistive touch screen allows
controls to be available, even when wearing protective gloves.

Access to the menu and control functions is provided by a unique passcode or by the
optional key switch. Up to 64 individual login accounts can be configured, with different
profiles and access permissions.

All models of the FireNET L@titude Fire Alarm Control Panel are available in 3 colors (red,
gray, or black), with an optional deep cabinet, and two power supply options. Refer to the
datasheet above for specific details on these options.

8 Slot Double Aperture with Printer
This configuration is equipped with everything that the base model panel has, but also has
an optional Printer.

The FireNET L@titude Printer is a 40 character front loading thermal printer that prints all
events as they occur. The printer can also be used to print all/selected event log entries.

8 Slot Double Aperture with Zone LEDs and Printer

This configuration is equipped as above, but also has an optional Zone LED module.
The Zone LED module contains 48 LEDs and is connected to the LCD Main Processor
Board of the FireNET L@titude Fire Alarm Control Panel. A maximum of three Zone LED
modules can be connected to provide the fascia with 144 Zone LED indicators.

July 2021 11
