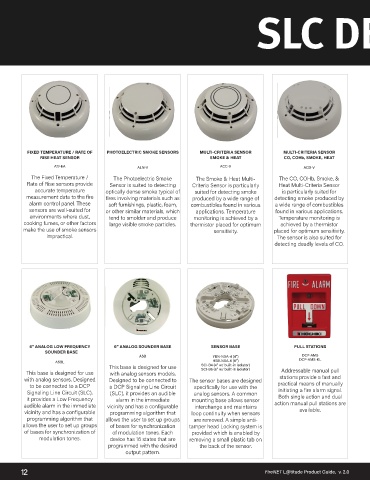

SLC DEVICES

FIXED TEMPERATURE / RATE OF PHOTOELECTRIC SMOKE SENSORS MULTI-CRITERIA SENSOR MULTI-CRITERIA SENSOR
RISE HEAT SENSOR SMOKE & HEAT CO, COHb, SMOKE, HEAT

ATJ-EA ALN-V ACC-V ACD-V

The Fixed Temperature / The Photoelectric Smoke The Smoke & Heat Multi- The CO, COHb, Smoke, &
Rate of Rise sensors provide Sensor is suited to detecting Criteria Sensor is particularly Heat Multi-Criteria Sensor
accurate temperature optically dense smoke typical of suited for detecting smoke is particularly suited for
measurement data to the fire fires involving materials such as produced by a wide range of detecting smoke produced by
alarm control panel. These soft furnishings, plastic, foam, combustibles found in various a wide range of combustibles
sensors are well-suited for or other similar materials, which applications. Temperature found in various applications.
environments where dust, tend to smolder and produce monitoring is achieved by a Temperature monitoring is
cooking fumes, or other factors large visible smoke particles. thermistor placed for optimum achieved by a thermistor
make the use of smoke sensors sensitivity. placed for optimum sensitivity.
impractical. The sensor is also suited for
detecting deadly levels of CO.

6” ANALOG LOW FREQUENCY 6” ANALOG SOUNDER BASE SENSOR BASE PULL STATIONS
SOUNDER BASE
DCP-AMS
ASB YBN-NSA-4 (4”) DCP-AMS-KL
ASBL HSB-NSA-6 (6”)
This base is designed for use SCI-B4 (4” w/ built-in isolator)
SCI-B6 (6” w/ built-in isolator)
This base is designed for use with analog sensors models. Addressable manual pull
with analog sensors. Designed Designed to be connected to The sensor bases are designed stations provide a fast and
to be connected to a DCP a DCP Signaling Line Circuit specifically for use with the practical means of manually
Signaling Line Circuit (SLC), (SLC), it provides an audible analog sensors. A common initiating a fire alarm signal.
it provides a Low Frequency alarm in the immediate mounting base allows sensor Both single action and dual
audible alarm in the immediate vicinity and has a configurable interchange and maintains action manual pull stations are
vicinity and has a configurable programming algorithm that loop continuity when sensors available.
programming algorithm that allows the user to set up groups are removed. A simple anti-
allows the user to set up groups of bases for synchronization tamper head Locking system is
of bases for synchronization of of modulation tones. Each provided which is enabled by
modulation tones. device has 16 states that are removing a small plastic tab on
programmed with the desired the back of the sensor.
output pattern.

12 FireNET L@titude Product Guide, v. 2.0
