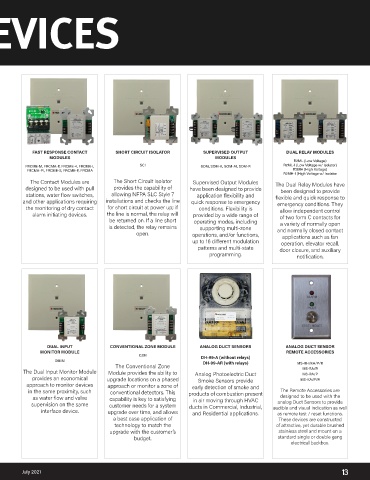

SLC DEVICES

FAST RESPONSE CONTACT SHORT CIRCUIT ISOLATOR SUPERVISED OUTPUT DUAL RELAY MODULES
MODULES MODULES
R2ML (Low Voltage)
FRCME-M, FRCMA-P, FRCME-4, FRCMA-I, SCI SOM, SOM-A, SOM-AI, SOM-R R2ML-I (Low Voltage w/ Isolator)
FRCMA-PI, FRCME-S, FRCME-P, FRCMA R2MH (High Voltage)
R2MH-I (High Voltage w/ Isolator
The Contact Modules are The Short Circuit Isolator Supervised Output Modules The Dual Relay Modules have
designed to be used with pull provides the capability of have been designed to provide been designed to provide
stations, water flow switches, allowing NFPA SLC Style 7 application flexibility and flexible and quick response to
and other applications requiring installations and checks the line quick response to emergency emergency conditions. They
the monitoring of dry contact for short circuit at power up; if conditions. Flexibility is allow independent control
alarm initiating devices. the line is normal, the relay will provided by a wide range of of two form C contacts for
be returned on. If a line short operating modes, including a variety of normally open
is detected, the relay remains supporting multi-zone and normally closed contact
open. operations, and/or functions, applications such as fan
up to 16 different modulation operation, elevator recall,
patterns and multi-state door closure, and auxiliary
programming. notification.

DUAL INPUT CONVENTIONAL ZONE MODULE ANALOG DUCT SENSORS ANALOG DUCT SENSOR
MONITOR MODULE REMOTE ACCESSORIES
CZM DH-99-A (without relays)
DIMM DH-99-AR (with relays) MS-RH/KA/P/R
The Conventional Zone
The Dual Input Monitor Module Module provides the ability to Analog Photoelectric Duct MS-RA/R
MS-RA/P
provides an economical upgrade locations on a phased Smoke Sensors provide MS-KA/P/R
approach to monitor devices approach or monitor a zone of early detection of smoke and
in the same proximity, such conventional detectors. This products of combustion present The Remote Accessories are
as water flow and valve capability is key to satisfying in air moving through HVAC designed to be used with the
supervision on the same customer needs for a system ducts in Commercial, Industrial, analog Duct Sensors to provide
interface device. upgrade over time, and allows and Residential applications. audible and visual indication as well
as remote test / reset functions.
a best case application of These devices are constructed
technology to match the of attractive, yet durable brushed
upgrade with the customer’s stainless steel and mount on a
budget. standard single or double gang
electrical backbox.

July 2021 13
