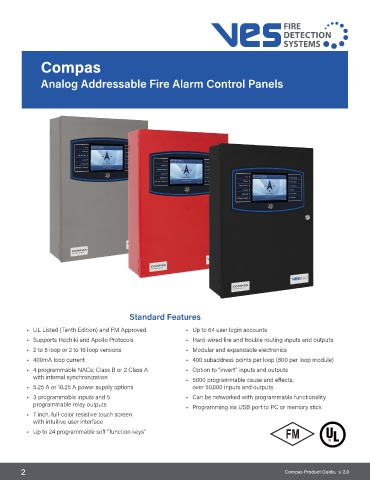

Compas
Analog Addressable Fire Alarm Control Panels
Standard Features
• UL Listed (Tenth Edition) and FM Approved • Up to 64 user login accounts
• Supports Hochiki and Apollo Protocols • Hard-wired fire and trouble routing inputs and outputs
• 2 to 8 loop or 2 to 16 loop versions • Modular and expandable electronics
• 400mA loop current • 400 subaddress points per loop (800 per loop module)
• 4 programmable NACs; Class B or 2 Class A • Option to “invert” inputs and outputs
with internal synchronization • 5000 programmable cause and effects;
• 5.25 A or 10.25 A power supply options over 50,000 inputs and outputs
• 3 programmable inputs and 5 • Can be networked with programmable functionality
programmable relay outputs • Programming via USB port to PC or memory stick
• 7 inch, full-color resistive touch screen
with intuitive user interface
• Up to 24 programmable soft “function keys”
2 Compas Product Guide, v. 2.0
