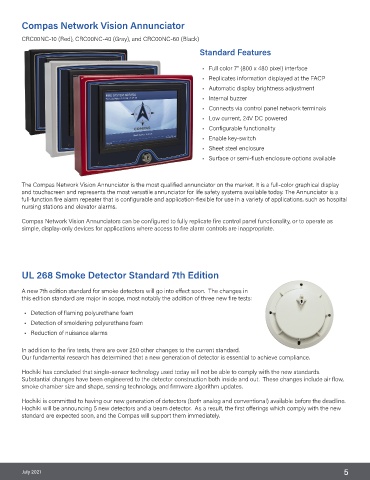

Compas Network Vision Annunciator

CRC00NC-10 (Red), CRC00NC-40 (Gray), and CRC00NC-60 (Black)

Standard Features

• Full color 7” (800 x 480 pixel) interface
• Replicates information displayed at the FACP
• Automatic display brightness adjustment
• Internal buzzer

• Connects via control panel network terminals
• Low current, 24V DC powered
• Configurable functionality
• Enable key-switch
• Sheet steel enclosure
• Surface or semi-flush enclosure options available

The Compas Network Vision Annunciator is the most qualified annunciator on the market. It is a full-color graphical display
and touchscreen and represents the most versatile annunciator for life safety systems available today. The Annunciator is a
full-function fire alarm repeater that is configurable and application-flexible for use in a variety of applications, such as hospital
nursing stations and elevator alarms.

Compas Network Vision Annunciators can be configured to fully replicate fire control panel functionality, or to operate as
simple, display-only devices for applications where access to fire alarm controls are inappropriate.

UL 268 Smoke Detector Standard 7th Edition

A new 7th edition standard for smoke detectors will go into effect soon. The changes in
this edition standard are major in scope, most notably the addition of three new fire tests:

• Detection of flaming polyurethane foam
• Detection of smoldering polyurethane foam
• Reduction of nuisance alarms

In addition to the fire tests, there are over 250 other changes to the current standard.
Our fundamental research has determined that a new generation of detector is essential to achieve compliance.

Hochiki has concluded that single-sensor technology used today will not be able to comply with the new standards.
Substantial changes have been engineered to the detector construction both inside and out. These changes include air flow,
smoke chamber size and shape, sensing technology, and firmware algorithm updates.

Hochiki is committed to having our new generation of detectors (both analog and conventional) available before the deadline.
Hochiki will be announcing 5 new detectors and a beam detector. As a result, the first offerings which comply with the new
standard are expected soon, and the Compas will support them immediately.
