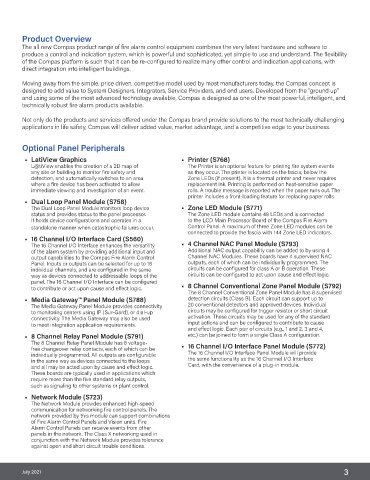

Product Overview
The all new Compas product range of fire alarm control equipment combines the very latest hardware and software to
produce a control and indication system, which is powerful and sophisticated, yet simple to use and understand. The flexibility
of the Compas platform is such that it can be re-configured to realize many other control and indication applications, with
direct integration into intelligent buildings.

Moving away from the simple, price driven, competitive model used by most manufacturers today, the Compas concept is
designed to add value to System Designers, Integrators, Service Providers, and end users. Developed from the “ground up”
and using some of the most advanced technology available, Compas is designed as one of the most powerful, intelligent, and
technically robust fire alarm products available.

Not only do the products and services offered under the Compas brand provide solutions to the most technically challenging
applications in life safety, Compas will deliver added value, market advantage, and a competitive edge to your business.

Optional Panel Peripherals

• LatiView Graphics • Printer (S768)
L@tiView enables the creation of a 2D map of The Printer is an optional feature for printing fire system events
any site or building to monitor fire safety and as they occur. The printer is located on the fascia, below the
detection, and automatically switches to an area Zone LEDs (if present). It is a thermal printer and never requires
where a fire device has been activated to allow replacement ink. Printing is performed on heat-sensitive paper
immediate viewing and investigation of an event. rolls. A trouble message is reported when the paper runs out. The
printer includes a front-loading feature for replacing paper rolls.
• Dual Loop Panel Module (S758)
The Dual Loop Panel Module monitors loop device • Zone LED Module (S771)
status and provides status to the panel processor. The Zone LED module contains 48 LEDs and is connected
It holds device configurations and operates in a to the LCD Main Processor Board of the Compas Fire Alarm
standalone manner when catastrophic failures occur. Control Panel. A maximum of three Zone LED modules can be
connected to provide the fascia with 144 Zone LED indicators.
• 16 Channel I/O Interface Card (S560)
The 16 Channel I/O Interface enhances the versatility • 4 Channel NAC Panel Module (S793)
of the alarm system by providing additional input and Additional NAC output capability can be added to by using 4
output capabilities to the Compas Fire Alarm Control Channel NAC Modules. These boards have 4 supervised NAC
Panel. Inputs or outputs can be selected for up to 16 outputs, each of which can be individually programmed. The
individual channels, and are configured in the same circuits can be configured for class A or B operation. These
way as devices connected to addressable loops of the circuits can be configured to act upon cause and effect logic.
panel. The 16 Channel I/O Interface can be configured
to contribute or act upon cause and effect logic. • 8 Channel Conventional Zone Panel Module (S792)
The 8 Channel Conventional Zone Panel Module has 8 supervised
• Media Gateway™ Panel Module (S788) detection circuits (Class B). Each circuit can support up to
The Media Gateway Panel Module provides connectivity 20 conventional detectors and approved devices. Individual
to monitoring centers using IP (Sur-Gard), or dial-up circuits may be configured for trigger resistor or short circuit
connectivity. The Media Gateway may also be used activation. These circuits may be used for any of the standard
to meet integration application requirements. input actions and can be configured to contribute to cause
and effect logic. Each pair of circuits (e.g., 1 and 2, 3 and 4,
• 8 Channel Relay Panel Module (S791) etc.) can be joined to form a single Class A configuration.
The 8 Channel Relay Panel Module has 8 voltage-
free changeover relay contacts, each of which can be • 16 Channel I/O Interface Panel Module (S772)
individually programmed. All outputs are configurable The 16 Channel I/O Interface Panel Module will provide
in the same way as devices connected to the loops the same functionality as the 16 Channel I/O Interface
and all may be acted upon by cause and effect logic. Card, with the convenience of a plug-in module.
These boards are typically used in applications which
require more than the five standard relay outputs,
such as signaling to other systems or plant control.
• Network Module (S723)
The Network Module provides enhanced high-speed
communication for networking fire control panels. The
network provided by this module can support combinations
of Fire Alarm Control Panels and Vision units. Fire
Alarm Control Panels can receive events from other
panels in the network. The Class X networking used in
conjunction with the Network Module provides tolerance
against open and short circuit trouble conditions.

July 2021 3
