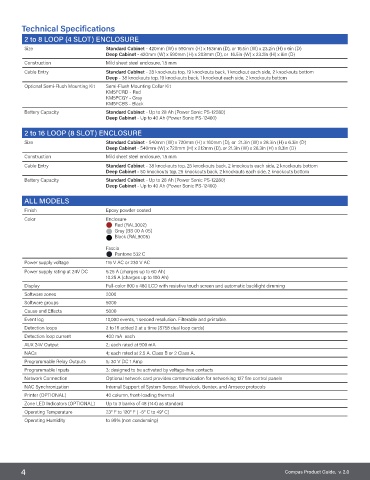

Technical Specifications
2 to 8 LOOP (4 SLOT) ENCLOSURE
Size Standard Cabinet - 420mm (W) x 590mm (H) x 153mm (D), or 16.5in (W) x 23.2in (H) x 6in (D)
Deep Cabinet - 420mm (W) x 590mm (H) x 203mm (D), or 16.5in (W) x 23.2in (H) x 8in (D)
Construction Mild sheet steel enclosure, 1.5 mm
Cable Entry Standard Cabinet - 28 knockouts top, 19 knockouts back, 1 knockout each side, 2 knockouts bottom
Deep - 38 knockouts top, 19 knockouts back, 1 knockout each side, 2 knockouts bottom
Optional Semi-Flush Mounting Kit Semi-Flush Mounting Collar Kit
KM5FCRD - Red
KM5FCGY - Gray
KM5FCBS - Black
Battery Capacity Standard Cabinet - Up to 28 Ah (Power Sonic PS-12280)
Deep Cabinet - Up to 40 Ah (Power Sonic PS-12400)
2 to 16 LOOP (8 SLOT) ENCLOSURE

Size Standard Cabinet - 540mm (W) x 720mm (H) x 160mm (D), or 21.3in (W) x 28.3in (H) x 6.3in (D)
Deep Cabinet - 540mm (W) x 720mm (H) x 212mm (D), or 21.3in (W) x 28.3in (H) x 8.3in (D)
Construction Mild sheet steel enclosure, 1.5 mm
Cable Entry Standard Cabinet - 38 knockouts top, 25 knockouts back, 2 knockouts each side, 2 knockouts bottom
Deep Cabinet - 50 knockouts top, 25 knockouts back, 2 knockouts each side, 2 knockouts bottom
Battery Capacity Standard Cabinet - Up to 28 Ah (Power Sonic PS-12280)
Deep Cabinet - Up to 40 Ah (Power Sonic PS-12400)
ALL MODELS

Finish Epoxy powder coated
Color Enclosure
Red (RAL3002)
Gray (BS 00 A 05)
Black (RAL9005)

Fascia
Pantone 532 C
Power supply voltage 115 V AC or 230 V AC
Power supply rating at 24V DC 5.25 A (charges up to 60 Ah)
10.25 A (charges up to 100 Ah)
Display Full-color 800 x 480 LCD with resistive touch screen and automatic backlight dimming
Software zones 2000
Software groups 5000
Cause and Effects 5000
Event log 10,000 events, 1 second resolution. Filterable and printable.
Detection loops 2 to 16 added 2 at a time (S758 dual loop cards)
Detection loop current 400 mA each
AUX 24V Output 2; each rated at 900 mA
NACs 4; each rated at 2.5 A. Class B or 2 Class A.
Programmable Relay Outputs 5; 30 V DC 1 Amp
Programmable Inputs 3; designed to be activated by voltage-free contacts
Network Connection Optional network card provides communication for networking 127 fire control panels
NAC Synchronization Internal Support of System Sensor, Wheelock, Gentex, and Amseco protocols
Printer (OPTIONAL) 40 column, front-loading thermal
Zone LED Indicators (OPTIONAL) Up to 3 banks of 48 (144) as standard
Operating Temperature 23º F to 120º F ( -5º C to 49º C)
Operating Humidity to 95% (non condensing)
